FLASH

16MB

SDRAM

64MB

DC-DC

12V  0.5A

Name

Details

LAN

1*10/100MBase-T LAN, support IEEE 802.3/802.3u auto-negotiation

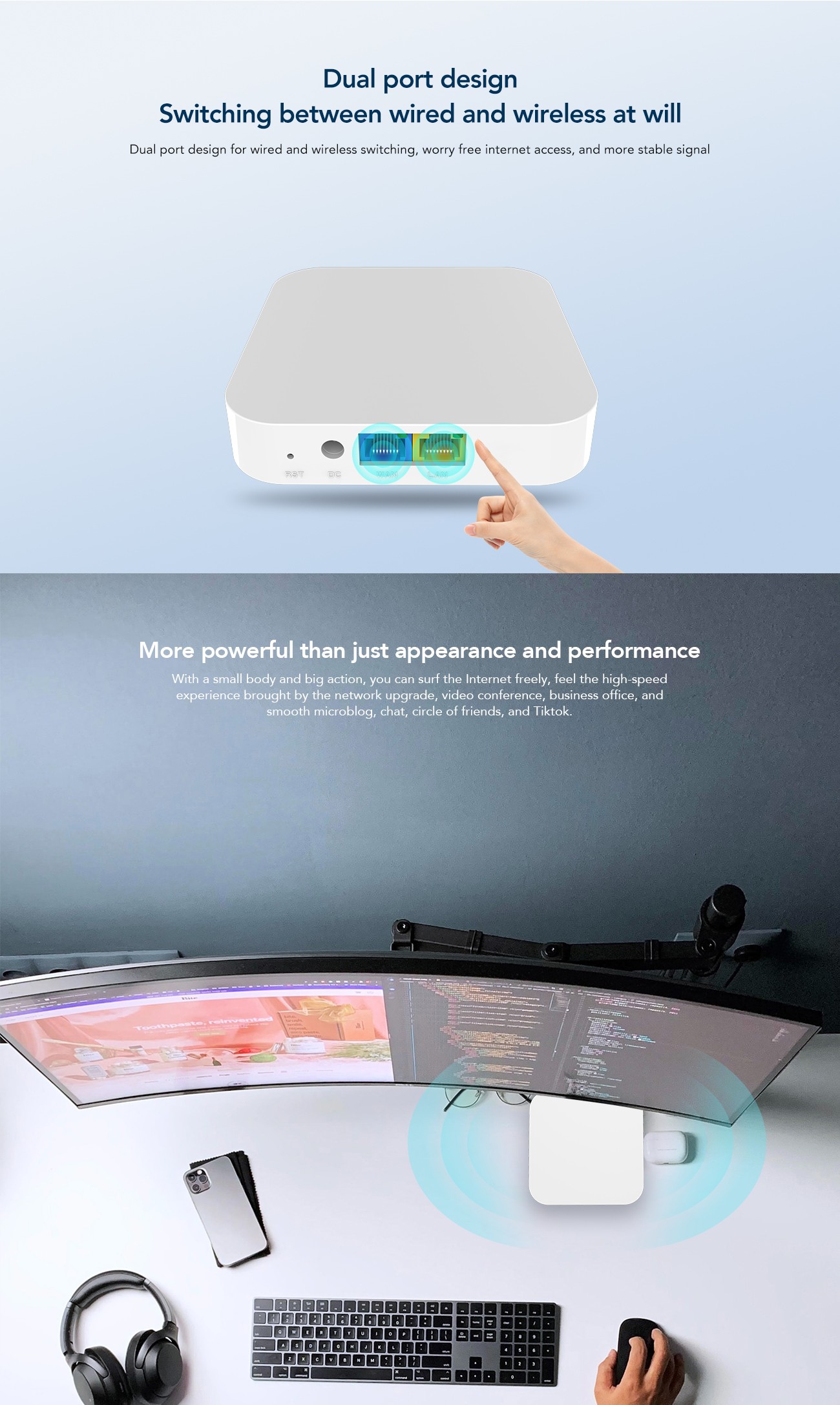

WAN/LAN

1*10/100MBase-T WAN/LAN, support IEEE 802.3/802.3u auto-negotiation;

It is LAN port when work as 4G Router, WAN port when work as wireless router

Support PPPoE, Automatic IP, Static IP, PPTP, L2TP, 4G

WIFI Antenna Connector

Internal: 2.4GHz 4dBi, 5GHz 6.5dBi Dual band Omni Antenna

RESET

Press it 10 seconds, Reset to factory default

LED Light

WAN, LAN, Wi-Fi, System

RF Power

802.11b

11M

18±2dBm

1M

20±2dBm

802.11g

54M

17±2dBm

6M

19±2dBm

802.11n HT20

MCS7

16±2dBm

MCS0

18±2dBm

802.11n HT40

MCS7

16±2dBm

MCS0

18±2dBm

Receive Sensitivity

802.11b

11M

-84dBm

1M

-91dBm

802.11g

54M

-70dBm

6M

-87dBm

802.11n HT20

MCS7

-68dBm

MCS0

-86dBm

802.11n HT40

MCS7

-66dBm

MCS0

-85dBm

EVM

802.11b: ≤-10dB ; 802.11g: ≤-25 dB ; 802.11n: ≤-28 dB

PPM

±20ppm

Channel

1～13, Support auto channel

Standard

802.11b/g/n

Bandwidth

HT20, HT20/HT40

Security

Open System, Shared key, WPA-Personal, WPA2-Personal, WPA-Auto-Personal, WPA-Enterprise (Radius), WPA2-Enterprise (Radius), WPA-Auto-Enterprise (Radius), Radius with 802.1x

RF Power Adjustable

Support

Name

Content

Working Temperature

-30℃ ～ +55℃

Max Working Temperature

-40℃ ～ +85℃ (Throughput some decrease)

Storage Temperature

-40℃ ～ +70℃

Humidity

5％～95％ (No Condensation)

Name

Content

Wi-Fi

Support Auto Channal, Guest SSID, SSID hide, Wireless MAC filter, white and black list

Net

PPPoE, Automatic IP, Static IP, L2TP, PPTP, 4G

Support automatically switching between WAN/ISP and 4G

Support VPN server and VPN client: PPTP, L2TP and OpenVPN

Support AP + Client

Firewall

Support NAT, URL Filter, MAC Filter and Network Service Filter

Support DoS attack protection, SYN flood attack

WAN PING, SSH, HTTP Access

Other functions

NTP and account setup; Port forwarding，Virtual Server，Watchdog，DMZ，DDNS
